The need for an enclosure

- Laser cutters produce smoke during operation, so it is necessary to control the smoke and ensure the ventilation of the surroundings to have a safe and pleasant working environment.

- Laser cutting also produces an intense light which can be harmful for the eyes if it’s directly stare at.

-Affordable models of laser cutters often don’t include an enclosure, to save costs and to make the machines more portable, easy to maintain, and easy to build.

-For this type of machines, a protective cover should follow the same principles: affordable, easy to build, easy to maintain, portable, and safe.

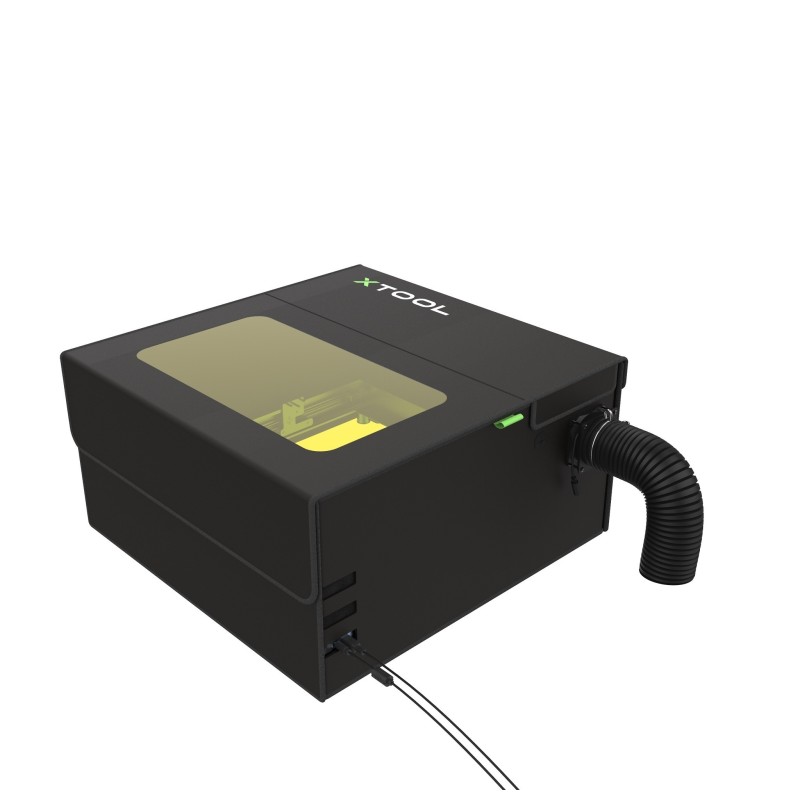

Highlight

Sturdy and portable

The structure is stable and solid thanks to the use of 4mm honeycomb board panels on all sides. It is assembled using double HOOK&LOOP fasteners and the front cover is magnetically closed, isolating 99% of the dust particles, odors, and noise during cutting and engraving operations.

Foldable. Easy storage and space saving

Quick assembly in 1 minute

The side of the cover has a tool storage area

Professional design, optimal safety

Flame protection

The inner layer of the enclosure is made with a 600D flame retardant polyester fabric for effective fire

retardant and safety protection. And for simple wiping and cleaning, the outer layer is made of cross-grain PIJ.

Easy to clean.

The outer layer is made of cross-grain PU for simple wiping and cleaning.

Window with eye protection

The protective cover comes with window made of blue light filtering PC, to be able to observe the machine operating in a safe way.

Efficient ventilation

Fresh air can enter through the air inlet on one side of the cover and then discharge through the exhaust outlet located on the opposite side, thus speeding up the discharge of smoke and odors from the cutting and carving process inside the protective cover.

Available for a variety of open laser

With a large working space of 625*613*314mm, the xTooI enclosure is compatible with machines up to 600*600*300mm and can accommodate most

machines on the market. xTool enclosure can also be used when you raise Dl and Dl Pro with xTool Dl risers. 3 access points to match the different heights of the machine.

Check out this video:
