Includes:

• MetroX 3D Scanner & Wrist Strap
• Tripod & Scanner Cradle
• Power Adapter
• Dual-axis Turntable
• Calibration Board
• Markers
• USB Type-A to Type-C Cable
• USB Type-C to Type-A Adapter
• Carrying Case
• Sample Bust
• Quick Start Guide, Certificate & Warranty Card
• Ball Marker × 10 (Magnetic)
• Dome Marker × 10 (Magnetic)
• Pyramid Marker × 4 (Magnetic)
• Bar Marker × 4
• Additional Markers

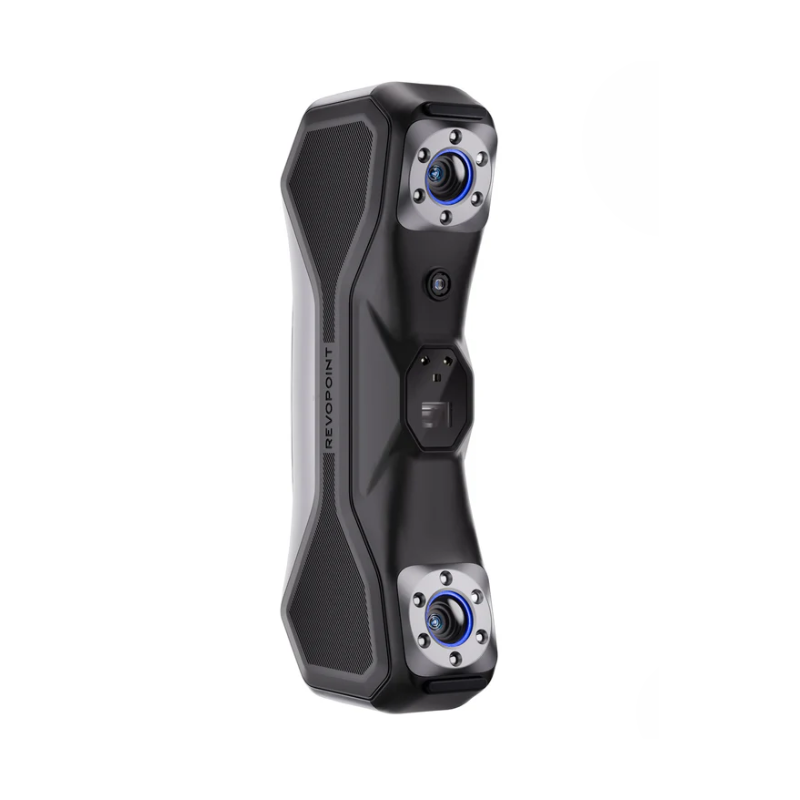

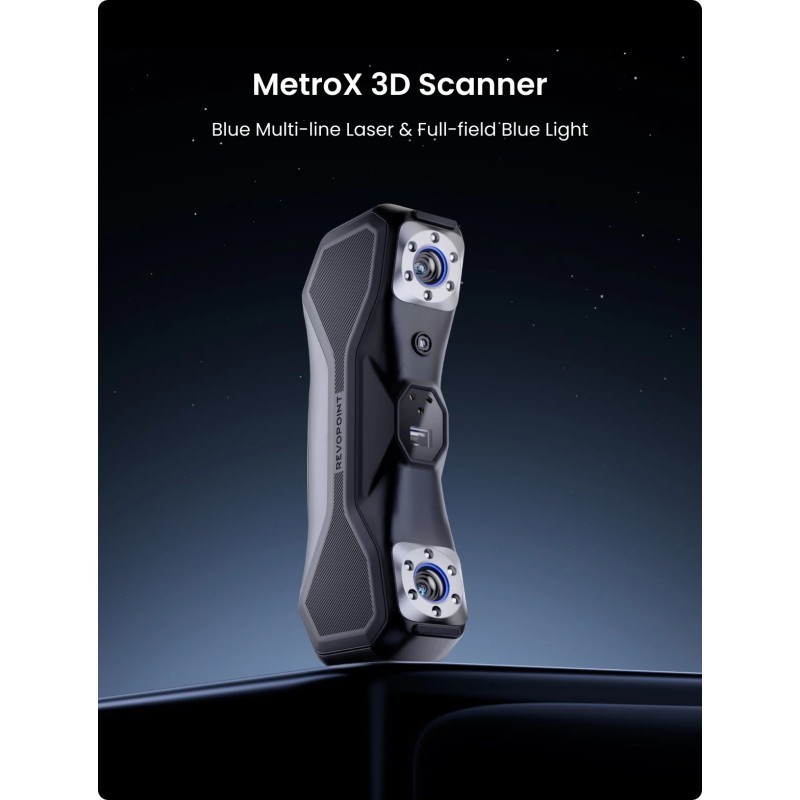

Technical Specifications for Revopoint MetroX Advanced Edition:

Scanning Technology: Blue Hybrid Laser and Full-Field Structured Light

Single-Frame Precision: Up to 0.01 mm

Single-Frame Accuracy: Up to 0.03 mm

Volumetric Accuracy: Up to 0.03 mm + 0.1 mm × L (L = length of the object in meters)

Scanning Speed:

• • Multi-Line Laser Mode: Up to 800,000 points per second
  • Full-Field Structured Light Mode: Up to 7 million points per second

Scanning Modes:

• • Cross Lines: 14 crossed blue laser lines
  • Parallel Lines: 7 parallel blue laser lines
  • Automatic Turntable Scanning: Dual-axis turntable support
  • Full-Field Blue Structured Light: 62 structured blue light lines

Tracking Modes:

• • Feature Mode
  • Marker Mode
  • Global Marker Mode

Field of View (FOV):

• • At 200 mm distance: 160 mm × 70 mm
  • At 400 mm distance: 320 mm × 215 mm

Working Distance: 200 mm to 400 mm

Minimum Scan Volume: 10 mm × 10 mm × 10 mm

Light Source: Class 1 Blue Laser (safe for human eyes)

Camera: HD RGB for color scanning

Supported File Formats: OBJ, STL, PLY, ASC, 3MF

Software Compatibility: Revo Scan (for scanning, editing, merging, and exporting data)

Connectivity: USB-C

Supported Operating Systems:

• • Windows 7 and above
  • Mac OS X 10.7 and above

Weight: Approximately 508 grams

Dimensions: Approx. 677.85 mm × 119.87 mm

Power Supply: Powered via USB-C connection
