Do you want to expand your 3D printing skills and build a practical and personalised gadget? The Triple-axis Tourbillon Model Components Kit-007 by Bambu Lab, includes the hardware components you need to assemble a triple-axis tourbillon model.

Most of the fun lies in printing the missing parts yourself. Bambu Lab provides a detailed 3D model that you can print out with your 3D printer. The model is designed to fit perfectly with the parts provided. Once you have printed all the parts, you can assemble the tourbillon model yourself.

Attention! The 3D-printed parts (see photo) are NOT included in the delivery!

Triple-axis Tourbillon Model on MakerWorld

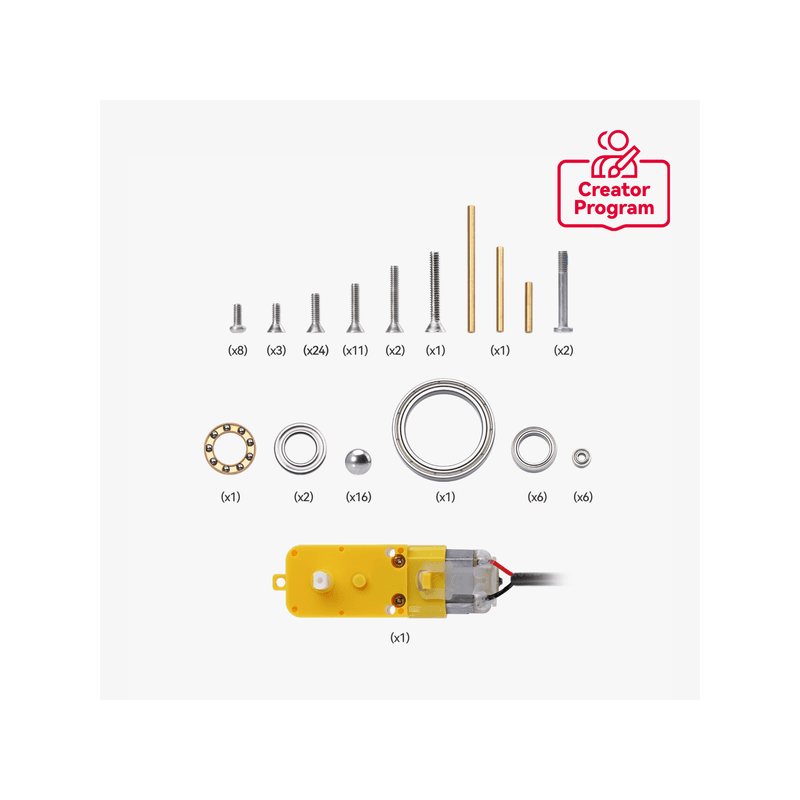

Included in the scope of delivery:

    3 x M2x6 FHCS screw
    24 x M2x8 FHCS screw
    11 x M2x10 FHCS screw
    2 x M2x12 FHCS screw
    1 x M2x14 FHCS screw
    8 x M2.5x6 BHCS screw
    2 x M3x23 SHCS screw
    6 x MR52 steel deep groove ball bearing
    1 x 6704 steel deep groove ball bearing
    1 x F8-14M miniature thrust ball bearing
    6 x MR128 steel deep groove ball bearing
    16 x 6 mm stainless steel ball
    1 x 2x13 mm brass dowel pin
    1 x 2x22 mm brass dowel pin
    1 x 2x32 mm brass dowel pin
    1 x TT motor (DC5V 59RPM CCW Single Axis)

Technical specifications:
Product weight                 79 g
Voltage                            DC 5V
