Extruder Gear Assembly for A1 [FAE008-N]

Extruder Gear Assembly for A1 [FAE008-N]

Name: Extruder Gear Assembly for A1 [FAE008-N]
Brand: Bambu Lab
SKU: FAE008-N
Price: 23 NZD
Availability: InStock

Review (0)

$23.00

Tax included

Auckland Local Stock

Auckland Local Stock
Authorized NZ Distributor – Marvle3D

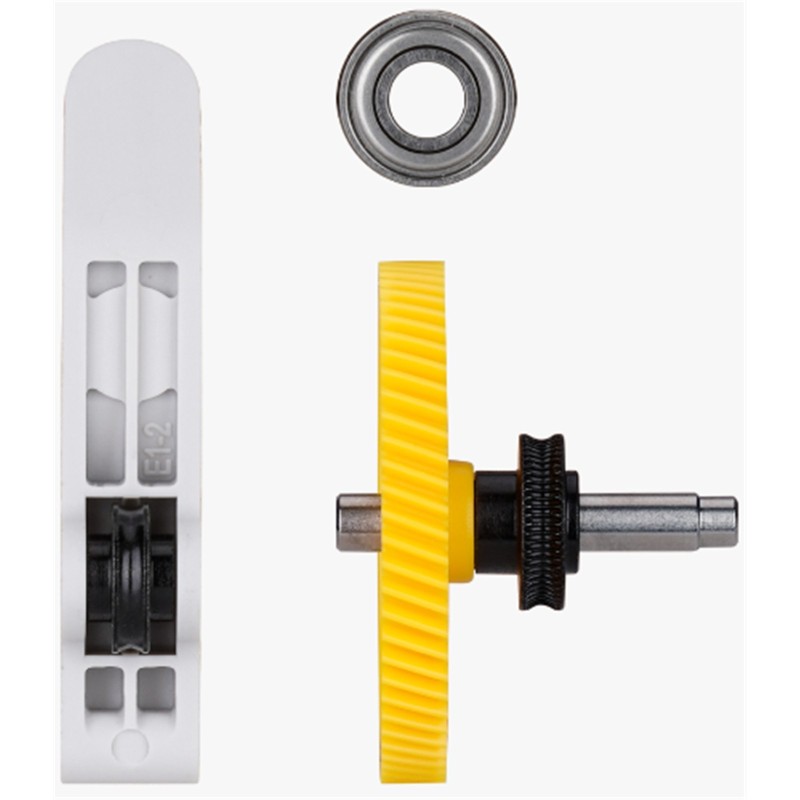

*Bambu Lab Part- Extruder Gear Assembly for A1
-Hardened steel gears for long lasting use
-Drives filament smoothly into hotend
-Replaces worn or clogged gear sets
-Improves feeding reliability and precision
-Official internal component for a1 extruder

Compatible With: A1

Why Marvle3D?
Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

Step 1: Remove the Extruder Gear Assembly
Use an H2.0 hex key to remove the four screws labeled E, loosen the screw labeled F, and take off the extruder front cover.

Step 2: Remove the Extruder Gear Assembly Components
Use tweezers to remove the extrusion spring and metal cap, then lift out the extruder gear assembly.

Step 3: Install the Extruder Gear Assembly
Install the drive gear and idler gear onto their shafts, then place the spring and end cap together in the correct orientation using tweezers, positioning them in the driven wheel bracket without tightening the side screw yet. Finally, close the extruder front cover.
