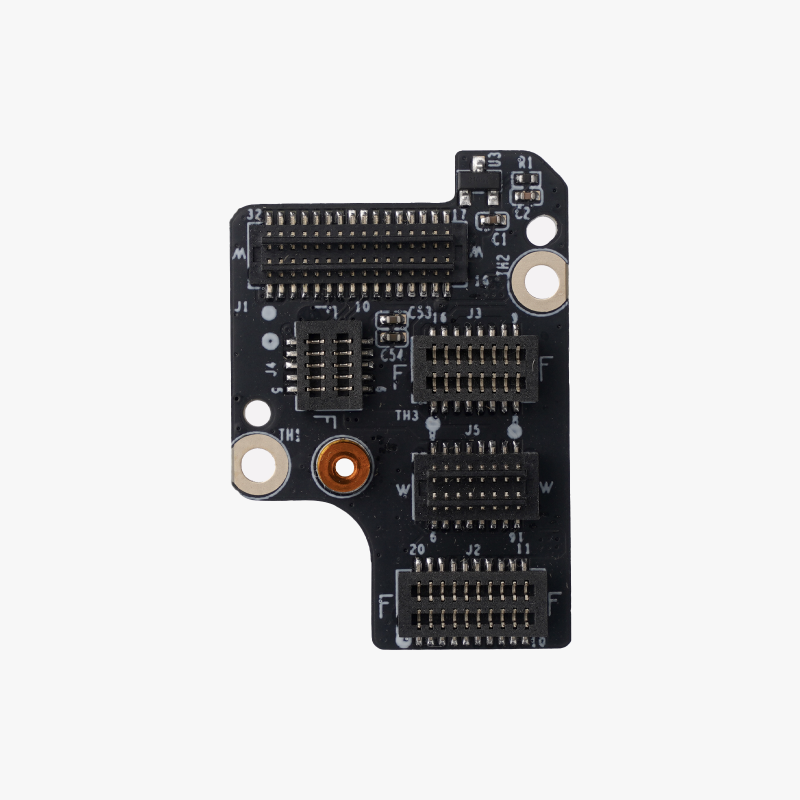

Name: Bambu Lab Extruder Interface Board for P1 Series [FAE002]
Brand: Bambu Lab
SKU: FAE002
Price: 20 NZD
Availability: InStock

Review (0)

$20.00

Tax included

Auckland Local Stock
Authorized NZ Distributor – Marvle3D

*Extruder Interface Board for P1 [FAE002]
-Auxiliary interface board for the toolhead
-Expands connections for extruder components
-Supports hotend and extruder unit interfaces
-Designed to work with the TH board
-Genuine replacement electronic board

Compatible Printers: Bambu Lab P1 Series

Why Marvle3D?
Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

Disassembly
Step 1 - Remove the housing of the toolhead
Refer to this wiki guide The housing of toolhead: https://wiki.bambulab.com/en/p1/maintenance/toolhead-housing to remove the toolhead housing.
Note: If you only need to remove the TH board, then it is sufficient to remove the rear housing of the toolhead.

Step 2 - Remove the FPC cable
Disconnect both ends of the FPC cable for removal.

Step 3 - Remove the connection board
Disconnect the 3 cable connectors as shown below (the hall switch cable, hotend fan cable, and the heater cable). Proceed to remove the 2 screws using an H1.5 hex key and take off the connection board.

Step 4 - Remove TH board screws
Disconnect the extruder motor cable and proceed to unscrew the 3 screws using the H1.5 hex key.

Step 5 - Remove the TH board
Flip the TH board over, remove the toolhead cable, and take off the TH board.
