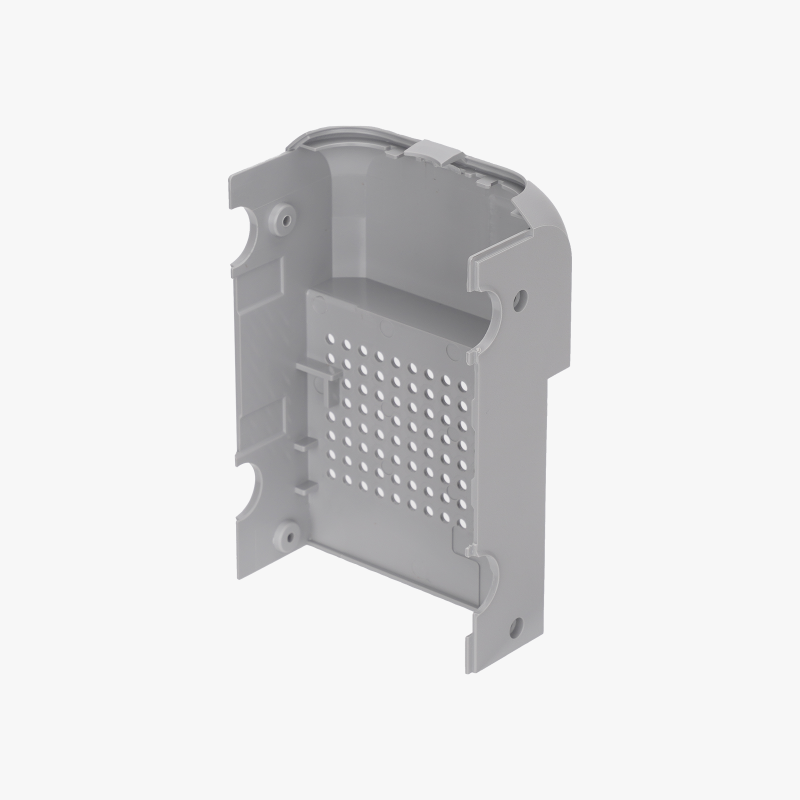

Bambu Lab Head Rear Cover for X1/ P1 Series [SPP052] [FAE005]

Bambu Lab Head Rear Cover for X1/ P1 Series [SPP052] [FAE005]

Name: Bambu Lab Head Rear Cover for X1/ P1 Series [SPP052] [FAE005]
Brand: Bambu Lab
SKU: SPP052/ FAE005
Price: 15 NZD
Availability: InStock

Review (0)

$15.00

Tax included

Last items in stock

Auckland Local Stock
Authorized NZ Distributor – Marvle3D

*Head Rear Cover compatible with X1/ P1 [SPP052] [FAE005]
-Rear cover for the printer toolhead
-Designed to fit the toolhead assembly
-Provides protection for internal components
-Durable construction for long-term use
-Genuine replacement cover part

Compatible Printers: Bambu Lab X1 Series, P1 Series

Why Marvle3D?
Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

Disassembly
Step 1 - Remove the Front Housing Assembly
Remove the Front Housing Assembly and disconnect the fan connector.

Step 2 - Pull out the PTFE tube
Gently press the pneumatic joint and carefully pull out the filament tube, ensuring it is fully pressed down for effortless removal.

Step 3 - Release the Filament Cutter Lever
Using an H1.5 hex key, partially loosen the screw on the cutter lever without completely removing it.

Step 4 - Remove screws
Remove the 8 screws located on the sides of the tool head, with 4 screws on each side.

Step 5 - Remove the Toolhead Rear Housing
Separate and remove the Toolhead Rear Housing from the Toolhead Middle Housing.

Step 6 - Remove the Toolhead Middle Housing
Carefully remove the Toolhead Middle Housing while remaining cautious of the protruding cutter blade.
