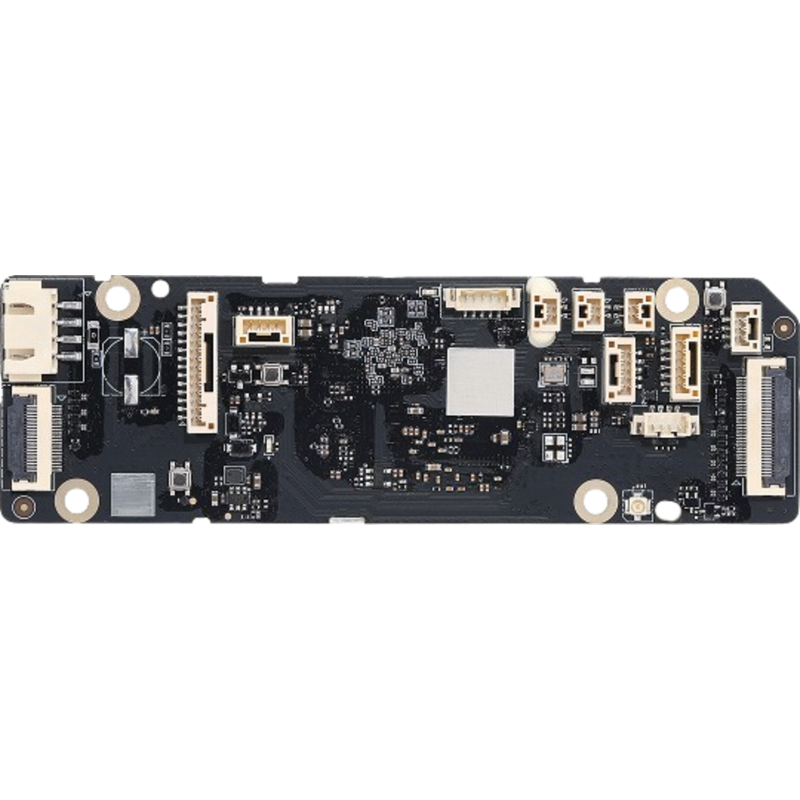

Bambu Lab AP Board - HV for P2S 3D Printer [DLB051]

Name: Bambu Lab AP Board - HV for P2S 3D Printer [DLB051]
Brand: Bambu Lab
SKU: DLB051
Price: 385 NZD
Availability: InStock

Review (0)

$385.00

Tax included

Auckland Local Stock.

Auckland Local Stock
Authorized NZ Distributor – Marvle3D

*AP Board - HV for P2S [DLB051]
-Central control board for printer operation
-Handles internal communication and processing
-Manages firmware and system memory
-Supports Wi-Fi camera LED and user interface
-Genuine high-voltage AP control board

Compatible Printers: Bambu Lab P2S

Why Marvle3D?
Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

Remove the AP Board
Step 1: Remove the PTFE Tube bracket
Refer to this guide Replace the PTFE Tube Bracket to remove the PTFE tube bracket. https://wiki.bambulab.com/en/p2s/maintenance/replace-ptfe-tube-bracket

Step 2: Remove the AP Cover
Pull away the front section of the plastic AP cover pictured to reveal the AP board and disconnect the left LED light cable from the AP board.
Remove the 2 screws which secure the AP cover to the printer frame from behind with a H1.5 hex wrench.
Pull the entire AP cover with one hand on the AP board portion at the front of the printer and the other hand on the plastic cable chain. The cover should come straight away from the printer to reveal the entire AP board.

Step 3: Remove the AP board
Remove all connectors from the AP board.
Note the ribbon cables at the front (screen) and back (live view camera) of the AP board which need their locks to be gently flipped up in order to remove them.
Other connectors also have locking tabs which must be released by compressing them.
