    Bambu Lab Screen Rear Housing with Hinge for P2S 3D Printer [FAC154]
    Bambu Lab Screen Rear Housing with Hinge for P2S 3D Printer [FAC154]

    Bambu Lab Screen Rear Housing with Hinge for P2S 3D Printer [FAC154]

    Review (0)
    $15.00
    Tax included
    Auckland Local Stock.

    Auckland Local Stock
    Authorized NZ Distributor – Marvle3D

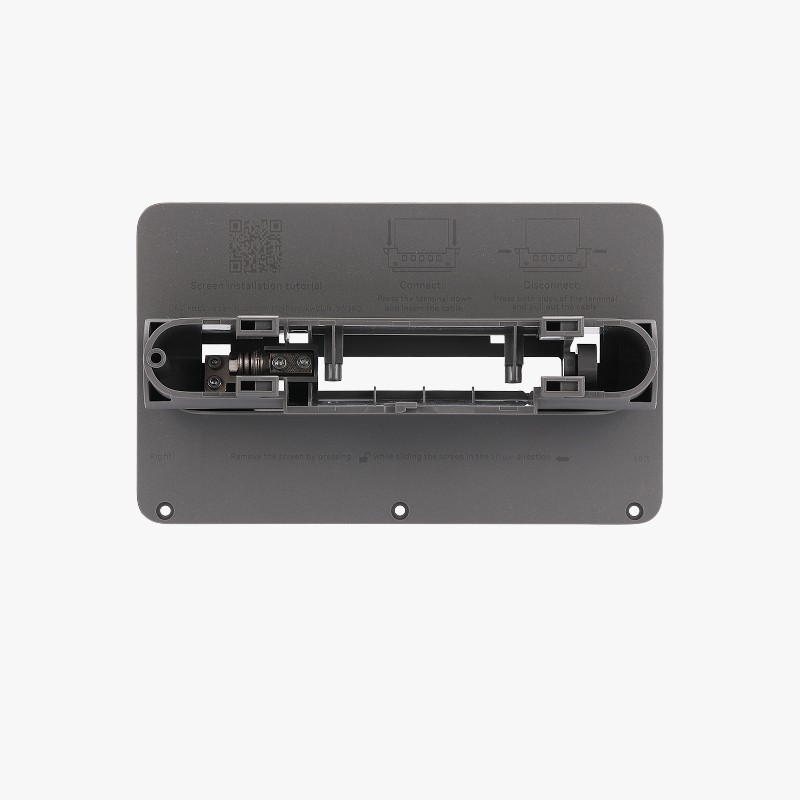

    *Screen Rear Housing with Hinge for P2S [FAC154]
    -Rear housing component for printer display
    -Integrated hinge for screen movement
    -Clips securely mount screen to printer
    -OEM-spec replacement part
    -Ideal for repairs or damaged housings

    Compatible Printers: Bambu Lab P2S

    Why Marvle3D?
    Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

    Quantity :
    Hurry Up Only 4 Items left items
    Write your review
    EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118
    • Security policySecurity policy(edit with the Customer Reassurance module)
    • Delivery policyDelivery policy(edit with the Customer Reassurance module)
    • Return policyReturn policy(edit with the Customer Reassurance module)

    Removing the Screen Rear Housing
    Step 1: Remove the Screen
    Refer to the instructions for Replacing the Touchscreen to remove the screen. https://wiki.bambulab.com/en/p2s/maintenance/replace-screen

    Step 2: Remove the Touchscreen Rear Housing
    Use an H1.5 Allen key to remove the three BT2x5 screws securing the screen rear housing. Then use the H1.5 Allen key to remove the two BT2x5 screws securing the screen ribbon cable interface board.
    Hold the hinge and gently pull it upward to expose the slot below the screw hole. Then, carefully pry open the clips on both sides along the opening. Once both side clips are released, pull the rear housing downward to disengage the upper clips, then remove the rear housing.
    Avoid prying the rear housing open by force, as this may cause damage.

    Installing the Touchscreen Rear Housing
    Step 1: Install the Touchscreen Rear Housing
    Pass the screen ribbon cable interface board through the rear housing hinge (be sure to check the orientation), and align the interface board with the screw holes.
    Insert the bottom of the screen rear housing into the screen first, ensuring it is flush. Then press along the edges to snap the clips into place.
    Use an H1.5 Allen key to tighten the two BT2x5 screws securing the screen ribbon cable interface. Then, using the same Allen key, tighten the three BT2x5 screws securing the screen rear housing.

    Step 2: Install the Screen
    Refer to the instructions for replacing the screen to install the screen properly. https://wiki.bambulab.com/en/p2s/maintenance/replace-screen

    Verifying Functionality
    Check whether the screen is securely attached to the printer.
    Start the printer and confirm that the screen displays properly and that the touchscreen functions normally.
