Bambu Lab Chamber Temperature Sensor for P2S 3D Printer [FAC156]

Name: Bambu Lab Chamber Temperature Sensor for P2S 3D Printer [FAC156]
Brand: Bambu Lab
SKU: FAC156
Price: 15 NZD
Availability: InStock

Review (0)

$15.00

Tax included

Auckland Local Stock.

Auckland Local Stock
Authorized NZ Distributor – Marvle3D

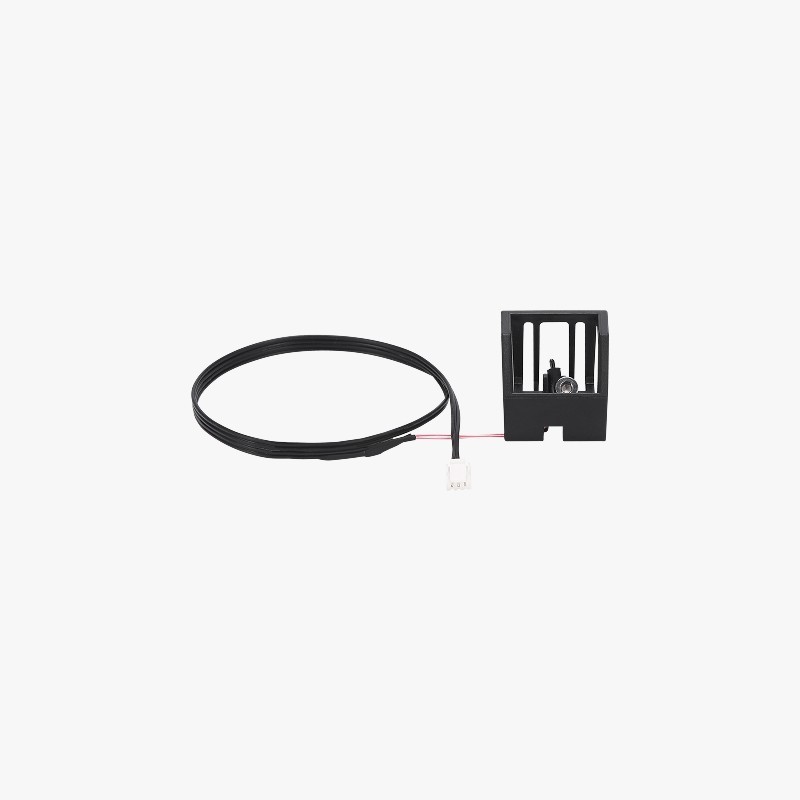

*Chamber Temperature Sensor for P2S [FAC156]
-NTC temperature sensor for enclosed chamber
-Fixed mounting bracket for secure installation
-Monitors internal chamber temperature
-Installed on inside of front beam
-OEM-spec replacement component

Compatible Printers: Bambu Lab P2S

Why Marvle3D?
Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

Remove the Chamber Temperature Sensor
Step 1: Disconnect the Cables
Open the access end of the AP board cover, then disconnect the chamber temperature sensor cable from the AP board.

Step 2: Remove the Chamber Temperature Sensor
Locate the chamber temperature sensor inside the front cross beam. Remove the two screws (BT3x6) with an H2.0 Allen key, then remove the sensor.

Install the Chamber Temperature Sensor
Step 1: Install the Chamber Temperature Sensor
Align the new chamber temperature sensor with the screw holes on the printer beam, and tighten the two fixing screws (BT3x6) using an H2.0 Allen key.
Please hold the chamber temperature sensor in place while tightening the first screw, then tighten both screws together.

Step 2: Connect the Cables
Route the chamber temperature sensor cable along the cross beam to the side of the AP board, connect it to the AP board, and refasten the inspection end of the AP board cover.

Verifying Functionality
Connect the power supply and turn on the printer, then check whether the chamber temperature is normal.
