    Bambu Lab Filament Cutter Lever for P2S 3D Printer[FAC168]
    Bambu Lab Filament Cutter Lever for P2S 3D Printer[FAC168]
    Bambu Lab Filament Cutter Lever for P2S 3D Printer[FAC168]

    Bambu Lab Filament Cutter Lever for P2S 3D Printer[FAC168]

    Review (0)
    $10.00
    Tax included

    Auckland Local Stock
    Authorized NZ Distributor – Marvle3D

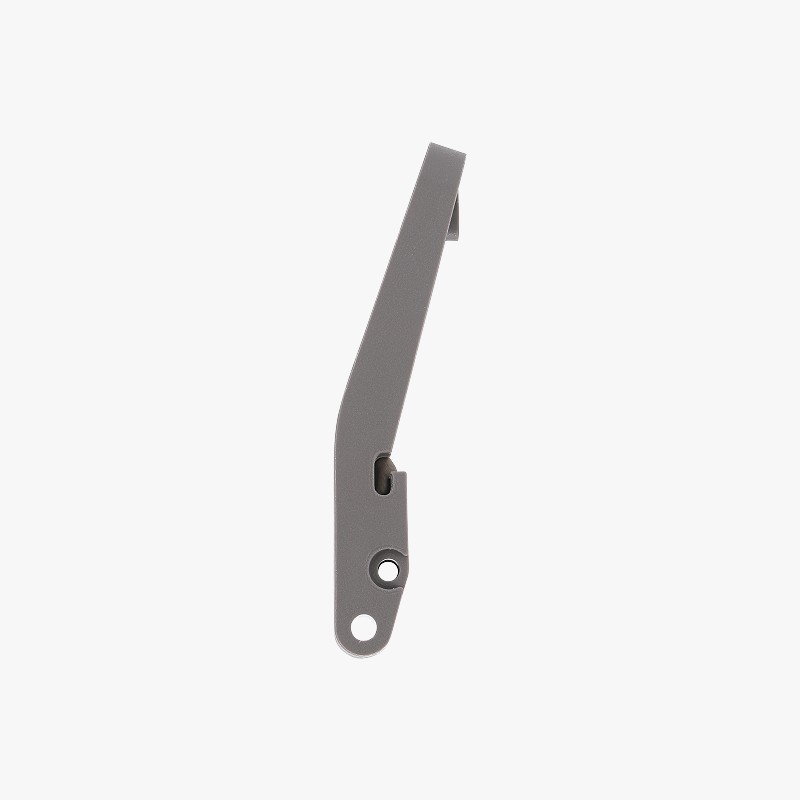

    *Filament Cutter Lever for P2S [FAC168]
    -Toolhead-mounted filament cutting lever
    -Cuts filament above the hotend
    -Enables clean filament retraction
    -Supports filament change operations
    -OEM-spec replacement component

    Compatible Printers: Bambu Lab P2S

    Why Marvle3D?
    Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

    Quantity :
    Hurry Up Only 4 Items left items
    Write your review
    EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118
    • Security policySecurity policy(edit with the Customer Reassurance module)
    • Delivery policyDelivery policy(edit with the Customer Reassurance module)
    • Return policyReturn policy(edit with the Customer Reassurance module)

    Removing the Cutter Lever
    Step 1: Open the Toolhead Front Cover
    Open the toolhead cover by pinching it from the sides near the bottom and pulling. Place the filament cover on top of the toolhead and out of the way, being careful not to pull on the wires still attached.

    Step 2: Release the Cutter Lever
    Slightly depress the filament cutter lever with one hand wile unscrewing the locking screw with the H2.0 Allen key.
    Once the screw is loosened enough, rotate the filament cutter away from the toolhead completely.

    Step 3: Remove the Cutter Blade
    Remove the cutter from the lever with tweezers, being very careful not to touch the sharp cutter blade. The cutter should be moved to the left so its pins slide out the open side of their slots to release it.

    Step 4: Remove the Cutter Lever
    The circular locking clip can suddenly pop out during removal, so be prepared for the clip's release.
    Use a tool to carefully push the circular locking clip off of the filament lever pin. Be sure to have a firm grip on the clip with either your hand or the tweezers and pull it the rest of the way off.
    Remove the washer and pull the filament cutter lever off of its pin. Remove or otherwise keep track of the radial spring which remains on the filament lever pin.
