Bambu Lab Front Housing Assembly - P1 Series 3D Printer [FAZ003]

Bambu Lab Front Housing Assembly - P1 Series 3D Printer [FAZ003]

Name: Bambu Lab Front Housing Assembly - P1 Series 3D Printer [FAZ003]
Brand: Bambu Lab
SKU: FAZ003
Price: 45 NZD
Availability: InStock

Review (0)

$45.00

Tax included

Auckland Local Stock
Authorized NZ Distributor – Marvle3D

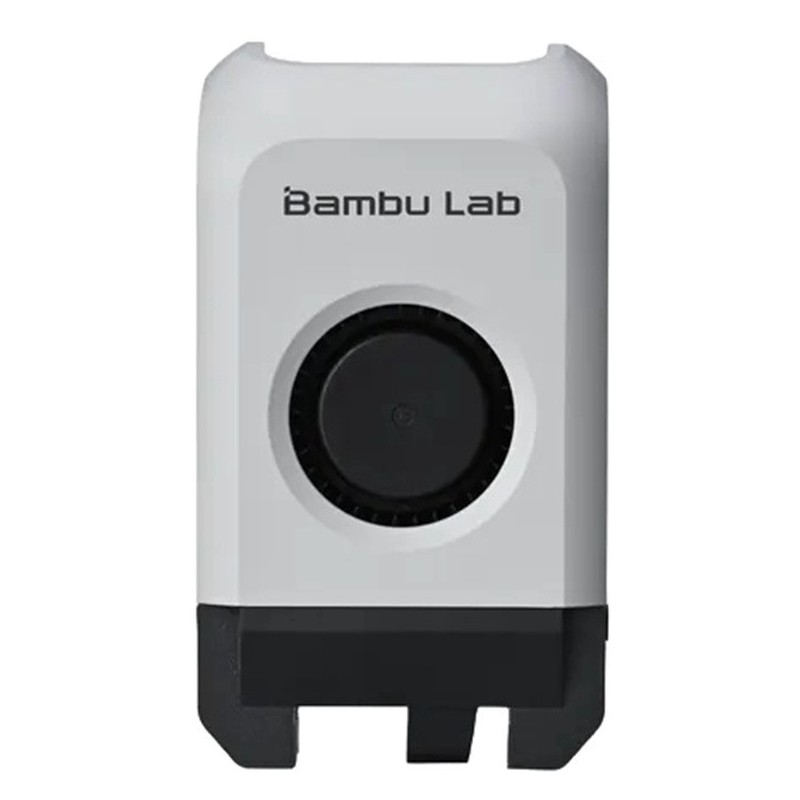

*Front Housing Assembly for P1 [FAZ003]
-Front housing assembly for part cooling
-Directs airflow to printed parts
-Improves print shaping and quality
-Supports consistent cooling performance
-OEM-spec replacement assembly

Compatible Printers: Bambu Lab P1 Series

Why Marvle3D?
Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

Disassembly
Step 1 - Remove the Front Housing Assembly
Remove the Front Housing Assembly and disconnect the fan connector.

Step 2 - Pull out the PTFE tube
Gently press the pneumatic joint and carefully pull out the filament tube, ensuring it is fully pressed down for effortless removal.

Step 3 - Release the Filament Cutter Lever
Using an H1.5 hex key, partially loosen the screw on the cutter lever without completely removing it. https://wiki.bambulab.com/en/x1/maintenance/replace-cutter-lever

Step 4 - Remove screws
Remove the 8 screws located on the sides of the tool head, with 4 screws on each side.

Step 5 - Remove the Toolhead Rear Housing
Separate and remove the Toolhead Rear Housing from the Toolhead Middle Housing.

Step 6 - Remove the Toolhead Middle Housing
Carefully remove the Toolhead Middle Housing while remaining cautious of the protruding cutter blade.
