Left Side Panel for P2S [FAS072]

Name: Left Side Panel for P2S [FAS072]
Brand: Bambu Lab
SKU: FAS072
Price: 60 NZD
Availability: InStock

Review (0)

$60.00

Tax included

Auckland Local Stock.

Auckland Local Stock
Authorized NZ Distributor – Marvle3D

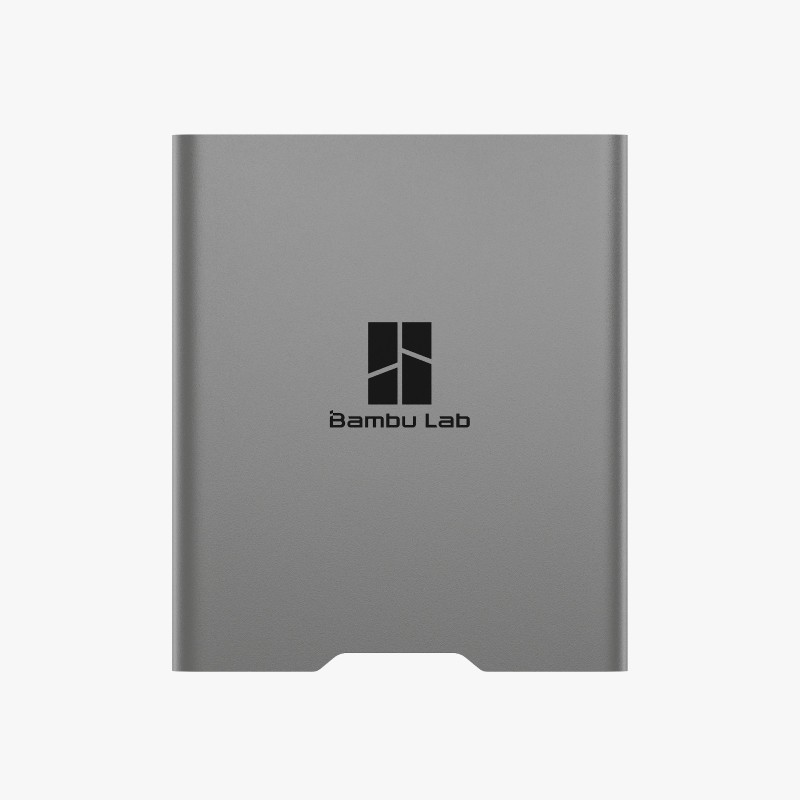

*Left Side Panel for P2S [FAS072]
-Replacement left side cover for P2S enclosure
-Defined as left panel when facing the front door
-Designed for correct fit and alignment
-Ideal for repairs or enclosure restoration
-Genuine part for consistent appearance

Compatible Printers: Bambu Lab P2S

Why Marvle3D?
Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

Overview:

When facing the printer's front door, the left side cover is referred to as the left side panel.

Removing The left Side Panel

Step 1: Remove the PTFE Tube Bracket, Filament Buffer and Rear Panel
Refer to the following Wiki disassembly guides to remove the PTFE tube bracket, filament buffer, and rear panel in sequence:
https://wiki.bambulab.com/en/p2s/maintenance/replace-ptfe-tube-bracket
https://wiki.bambulab.com/en/p2s/maintenance/replace-filament-buffer
https://wiki.bambulab.com/en/p2s/maintenance/replace-rear-panel

Step 2: Remove the screen and front cover
You can refer to the instructions in the P2S Front Cover Replacement Guide to remove the screen and front cover. https://wiki.bambulab.com/en/p2s/maintenance/replace-front-cover

Step 3: Remove the AP Cover
Open the access end of the AP Board Cover and disconnect the LED Light cable from the AP board.
Use an H1.5 Allen key to remove the two AP board cover fixing screws (BT2x8).
Hold the AP board cover connected to the cable chain and pull it to the right. Support the left side of the AP board cover with your left hand while pulling. As you pull out the right cable chain, continue holding the AP board cover with your left hand to prevent it from falling.
Warning: When removing the entire AP board cover, do not only pull it from the front as this may break it. Pull it using both hands, from the front and back.

Step 4: Remove the Left Panel
Use an H1.5 hex wrench to remove the two black screws (ST2x3.5) and one silver screw (ST2x4.5) securing the top of the left side panel.
Use an H2.0 hex wrench to remove the two screws (BT3x6) on the upper beam.
Use an H2.0 hex wrench to remove the one screw (BT3x6) on the middle beam.
Use an H2.0 hex wrench to remove the three screws (BT3x6) on the front column.
Use an H2.0 hex wrench to remove the two inner screws (BT3x6).
Use an H2.0 hex wrench to remove the one screw (M3x4.5) at the upper rear and the three screws (ST3x4.5) at the lower rear.
Use an H2.0 hex wrench to remove the one screw (BT3x6) on the rear column.
Lay the printer on its right side.
Use an H2.0 hex wrench to remove the three screws (BT3x8) on the bottom.
Remove the left side panel.
