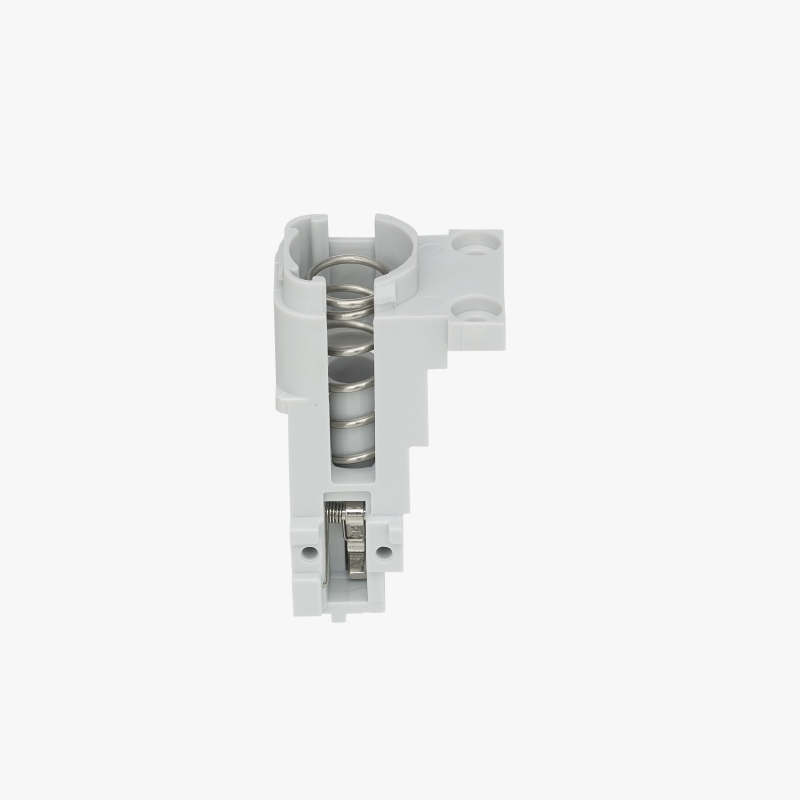

    Filament Sensor Base for A1 / A1 Mini [FAC055]
    Filament Sensor Base for A1 / A1 Mini [FAC055]
    Filament Sensor Base for A1 / A1 Mini [FAC055]

    Filament Sensor Base for A1 / A1 Mini [FAC055]

    Review (0)
    $6.00
    Tax included
    Auckland Local Stock

    Auckland Local Stock
    Authorized NZ Distributor – Marvle3D

    *Filament Sensor Base for A1 / A1 Mini [FAC055]
    -Mounting base for filament sensor hall board
    -Installs on top of the extruder unit
    -Provides stable support for filament sensor
    -Serves as filament hub base for A1 series
    -Designed for correct fit and alignment

    Compatible Printers: Bambu Lab A1, A1 Mini

    Why Marvle3D?
    Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

    Quantity :
    In Stock 19 Available items
    Write your review
    EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118
    • Security policySecurity policy(edit with the Customer Reassurance module)
    • Delivery policyDelivery policy(edit with the Customer Reassurance module)
    • Return policyReturn policy(edit with the Customer Reassurance module)

    Steps for the Operations
    Step 1: Unload the filament from the printer (for standalone printer)
    Method 1: Unload the filament by operating the printer (when the printer is powered on)
    1. Click "Filament" on the printer screen, and select the filament slot you want to unload
    2. Click the "Unload" button set up the unloading process and wait for about 3 minutes to finish.
    Method 2: Cut the filament with the filament cutter and unload the filament manually (when the printer is powered off)

    Step 2: Power off, and remove the filament hub assembly
    1. Press the switch button to power off the printer and disconnect the power cable. (skip if you take Method 2 in Step 1)
    2. Use a wrench to delicately pry off the Filament Hub Cap, then remove the Filament Hub Assembly and the corresponding spring from the top.

    Step 3: Remove the Filament Sensor and Replace the Feeding Bracket
    1.Use an H2.0 hex key to unscrew two screws and pull up the filament sensor base
    2. Use an H1.5 hex key wrench to unscrew two screws, disconnect the Filament Sensor and replace the filament sensor base

    Bambu Lab
    FAC055
    19 Items

    Specific References

    No customer reviews for the moment.
