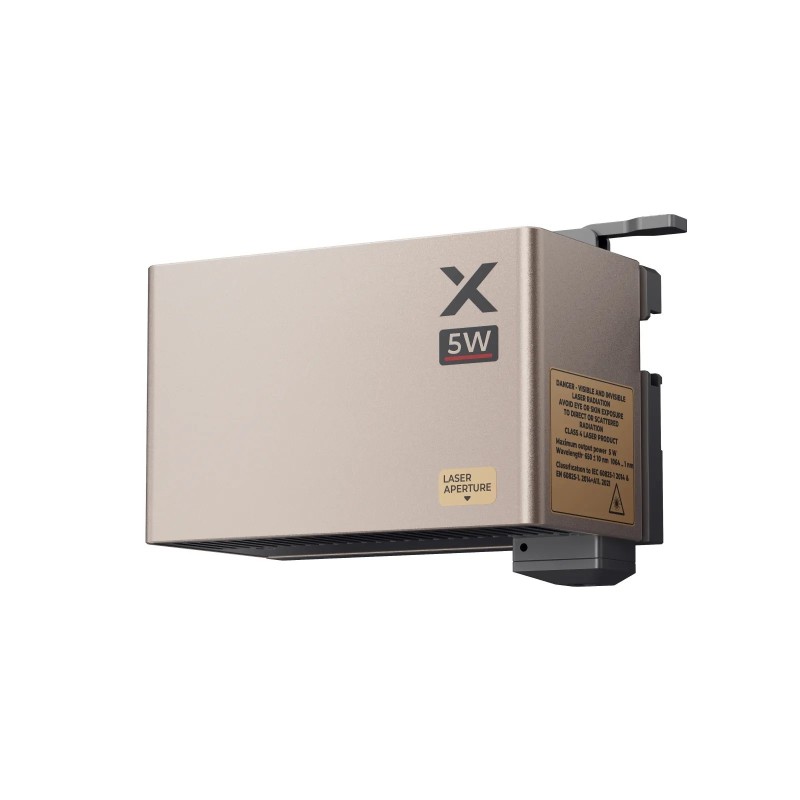

Xtool 5W IR Laser Module for P3 Laser Machine
$1,399.00
Tax included
xTool 5W IR Laser Module for P3 is designed for high-precision engraving on plastics, metals, and coated materials. Operating at 1064 nm with a 4 ns pulse width, it delivers stable performance, fine detail, and minimal heat impact. With fast repetition rates up to 30 kHz and a long 8,000-hour lifetime, the module ensures reliable productivity. Air-cooled and powered directly by the P3 main unit, it offers easy installation, safe operation, and consistent results for professional and industrial applications.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Specifications
| Item | Specification |
|---|---|
| Wavelength | 1064 nm ± 1 nm |
| Output Power | 5 W |
| Pulse Width | 4 ns |
| Repetition Rate | 25–30 kHz |
| Peak Power | 49–65 kW |
| Single Pulse Energy | > 0.14 mJ |
| Focal Length | 49 mm |
| Beam Waist | ≥ 3 mm |
| Lifetime Requirement | 8,000 h |
| Laser Head Dimensions | 136.5 × 94.5 × 92.5 mm |
| Laser Head Weight | 850 g |
| Working Area | 650 × 426 mm |
| Operating Temperature | 0–35 °C |
| Storage Temperature | −10 to 60 °C |
| Cooling Method | Air cooling |
| Power Supply | Host power supply (powered by main unit) |
| Package Dimensions | 236 × 184 × 156 mm |
| Package Weight | 1.5 kg |
P0102000211
Specific References
- MPN
- P0102000211
No customer reviews for the moment.
xTool 5W IR Laser Module for P3 is designed for high-precision engraving on plastics, metals, and coated materials. Operating at 1064 nm with a 4 ns pulse width, it delivers stable performance, fine detail, and minimal heat impact. With fast repetition rates up to 30 kHz and a long 8,000-hour lifetime, the module ensures reliable productivity. Air-cooled and powered directly by the P3 main unit, it offers easy installation, safe operation, and consistent results for professional and industrial applications.
