    Bambu Lab XY Belt for P2S 3D Printer [FAC169]
    Bambu Lab XY Belt for P2S 3D Printer [FAC169]
    Bambu Lab XY Belt for P2S 3D Printer [FAC169]

    Bambu Lab XY Belt for P2S 3D Printer [FAC169]

    Review (0)
    $25.00
    Tax included
    Last items in stock

    Auckland Local Stock
    Authorized NZ Distributor – Marvle3D

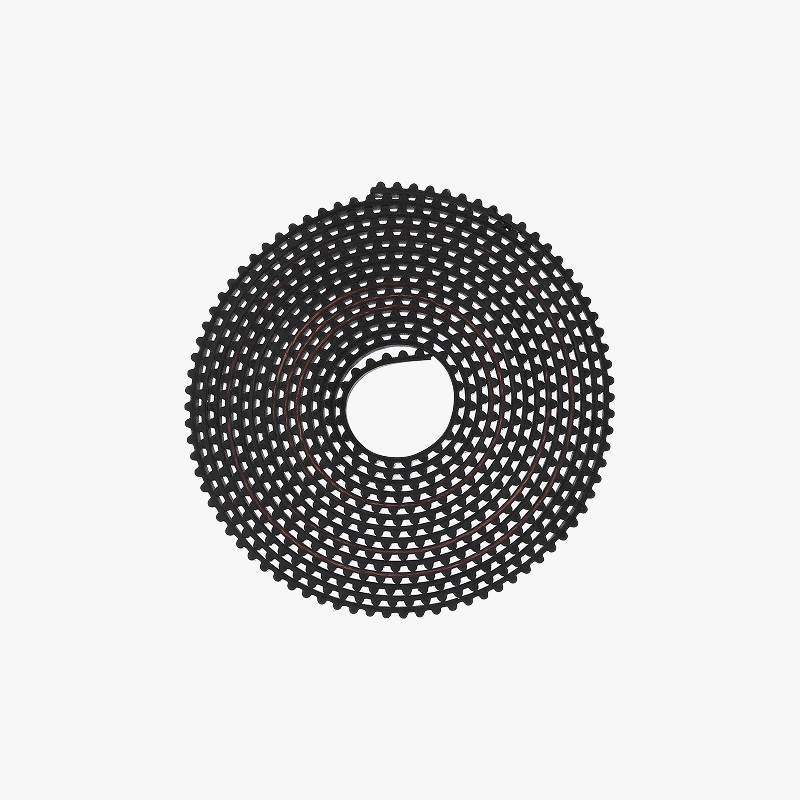

    *XY Belt for P2S [FAC169]
    -Drives toolhead movement on XY plane
    -Connects XY motors to toolhead assembly
    -1444mm belt length for P2S system
    -7mm belt width for precise motion
    -OEM-spec replacement drive belt

    Compatible Printers: Bambu Lab P2S

    Why Marvle3D?
    Marvle3D—New Zealand’s expert since 2016, offering friendly support, in-store demos, and one of the country’s largest ranges.

    Quantity :
    Hurry Up Only 3 Items left items
    Write your review
    EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118
    • Security policySecurity policy(edit with the Customer Reassurance module)
    • Delivery policyDelivery policy(edit with the Customer Reassurance module)
    • Return policyReturn policy(edit with the Customer Reassurance module)

    Removing the XY Belt
    Step 1: Release the XY Tensioner
    Loosen the XY tensioning screws on the back of the printer with an H2.0 hex wrench.

    Step 2: Remove the XY Belt Fixing Blocks
    Use the H2.0 hexagon wrench to remove the three screws (M2.5x5) of the belt fixing block and remove the belt from the toolhead.
    Do the above for both sides of the toolhead.
    Then use a hex wrench to push against the belt holder, pushing it out slightly, and remove the belt holder from the belt. You can then take out the belt.
    Note:
    To simplify reinstallation, you only need to remove the two belt holders on one side; the other side can stay in place.
    If the belt is not held tightly, you can simply push the belt out of the clamp without using a hex wrench.

    Step 3: Bonding the Belt
    With one end of the old belt freed, you can use the quick-drying glue to carefully align the end of the old belt with the replacement one and glue them together (with belt teeth facing the same direction).
    Hold them together carefully until the glue has set.
    You can use to the same glueing method for replacing either or both XY belts.

    Step 4: Install the Belt Fixing Block
    Thread the free end of the new belt through the belt fixing block.
    Then attach the belt holder to the end of the new belt, meshing their teeth together.
    Pull the belt so the holder is pulled through the belt fixing block and secured back in place.
    You can use to the same method for to fix either belt in place.
